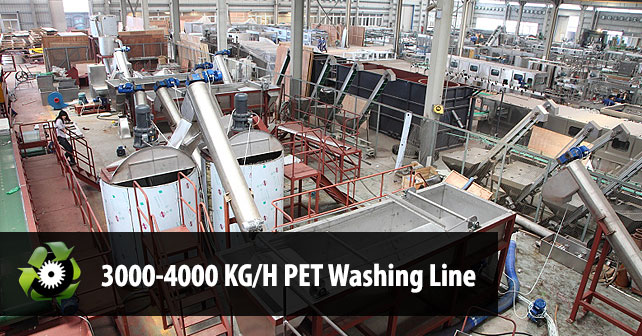

This is a standard 3,000 – 4,000 KG/H PET bottle washing line we designed for a client in Russia and can reach slightly higher capacities if we upgrade several pieces of equipment.
PET Washing Line Diagram
[click to enlarge diagram]
Machinery List / Specifications / Quotation
| Machine Description | Specifications | Qty (piece) | Price (USD) | Total (USD) |
| 1. Debaler Machine (model#CBJ) |
1) return cycloid motor: 5.5kw 2) reduction ratio: 1:35 3) main shaft rotating speed: 42rpm 4) turning diameter: φ390㎜ 5) main machine material: Q235 6) putting platform dimension: 1900×2500㎜ 7) feeding mouth dimension: 1800×2200㎜ |
1 | $16,000 | $16,000 |
| 2. Belt Conveyor 1 (model#PS－L－1000) |
1) belt width: 1000㎜ 2) belt material: PVC 3) motor power: 3.7KW 4) reduction ratio: 1: 30 5) drive roll diameter: φ273㎜ 6) belt linear velocity: 0.63m/s |
1 | $6,500 | $6,500 |
| 3. Trommel (model#GX1500) |
1) diameter: φ1500㎜ 2) length: 4500㎜ 3) material: carbon steel 4) degree of inclination: 5° 5) geared motor: 5.5KW 6) reduction ratio: 1:17 |
1 | $16,000 | $16,000 |
| 4. Belt Conveyor 2 (model#PS-L-1000) |
1) belt width: 1000㎜ 2) belt material: PVC 3) motor power: 3.7KW 4) reduction ratio: 1: 30 5) drive roll diameter: φ273㎜ 6) belt linear velocity: 0.63m/s |
1 | $6,000 | $6,000 |
| 5. Sorting Conveyor (model#FXPS) |
A. Sorting conveyor (two sets) 1) belt width: 600㎜ 2) belt material: PVC 3) motor power: 1.5 KW 4) roller diameter: φ240㎜ 5) belt linear velocity: 0-1.25m/s 6) belt conveyor length: 11500㎜ B. Reverse conveyor |
1 | $20,000 | $20,000 |
| 6. Belt Conveyor 3 (model#PS-L-1000) |
1) belt width: 1000㎜ 2) belt material: PVC 3) motor power: 3KW 4) reduction ratio: 1: 30 5) drive roll diameter: φ273㎜ 6) belt linear velocity: 0.63m/s |
2 | $6,000 | $12,000 |
| 7. Belt Conveyor 4 (model#PS-L-1000) |
1) belt width: 1000㎜ 2) belt material: PVC 3) motor power: 3.7KW 4) reduction ratio: 1: 30 5) drive roll diameter: φ273㎜ 6) belt linear velocity: 0.63m/s 7) driven roller diameter: φ320㎜ |
4 | $6,000 | $24,000 |
| 8. Granulator (model#SWHB1200) |
1) main motor: 45KW 2) cutter head rotary diameter: φ630㎜ 3) cutter head width: 1150㎜ 4) No.of rotating knife: 10 pcs 5) No.of stating knife: 4 pcs 6) cutter material: SKD11 7) cutter head rotating speed: 462rpm 8) cutter head material: 45 steel 9) screen mesh: φ95㎜ 10) hydraulic open feeding hopper/ hydraulic screen changer 11) hydraulic station power: 2.2KW 12) capacity: 800-1000kg/h 13) transmission power: 3KW 14) gear reducer model: NMRV130-30 15) screw conveyor rotating speed: 20-72.5rpm adjustable 16) screw vane diameter: φ250㎜ 17) screw space: 200㎜ 18) screw material: stainless steel |
4 | $24,000 | $96,000 |
| 9. Screw Conveyor 1 (model#LX-390) |
1) motor power: 3.7KW 2) screw conveyor rotating speed: 20-72.5 rpm 3) screw vane diameter: φ390㎜ 4) screw stroke: 300㎜ 5) screw material: stainless steel 6) frame material: carbon steel |
2 | $5,500 | $11,000 |
| 10. Film and Flake Separator (model#PMFL) |
1) material: stainless steel 2) frame material: carbon steel |
2 | $4,000 | $8,000 |
| 11. Wind-Sending System (model#FS) |
1) blower motor: 3KW 2) pipe diameter: φ159㎜ 3) pipe material: stainless steel |
2 | $1,500 | $3,000 |
| 12. Storage For Labels (model#GLC-1) | 1) storage material: stainless steel 2) volume: 1m3 |
2 | $1,000 | $2,000 |
| 13. Screw Conveyor 2 (model#LX-320) |
1) motor power: 3.7KW 2) screw conveyor rotating speed: 20-72.5 rpm 3) screw vane diameter: φ390㎜ 4) screw stroke: 280㎜ 5) screw material: stainless steel 6) frame material: carbon steel |
2 | $5,500 | $11,000 |
| 14. Washing Tank (model#QXC1500) |
1. Width inside: 1500㎜ 2. Total length: 5000㎜ 3. Material: stainless steel 4. Frame material: carbon steel 5. Bottom screw motor: 5.5KW 6. Discharge material screw motor: 3.7KW 7. Lifting dirt screw motor power: 3KW 8. Main motor power: 3KW |
6 | $34,000 | $204,000 |
| 15. Hot (Boiler) Washer (model#ZFL800) |
1) motor power: 7.5KW 2) reducer model: BLD5-71-7.5 3) agitating shaft rotating speed: 20rpm 4) heating power: 60KW 5) boiler material: stainless steel 6) transmission power: 3.7KW 7) reducer model: NMRV110-20 8) screw rotating speed: 20-72.5rpm, adjustable 9) screw vane diameter: φ290㎜ 10) screw spacer: 200㎜ 7) screw material: stainless steel |
4 | $16,000 | $64,000 |
| 16. High Speed Friction Washer (model#HXJ800) | 1) rotor rotary diameter: φ524㎜ 2) rotor material: carbon steel 3) rotor rotating speed: 960rpm 4) No. of rotor vane: 24 pcs 5) washer body: stainless steel 6) effective washing length: 2800㎜ 7) motor power: 37KW 8) conveying angle: 15° 9) driving way: belt drive |
2 | $22,000 | $44,000 |
| 17. Screw Conveyor 3 (model#LX-320) | 1) motor power: 3.7KW 2) screw conveyor rotating speed: 20-72.5rpm adjustable 3) screw vane diameter: φ320㎜ 4) screw stroke: 280㎜ 5) screw material: stainless steel 6) frame material: carbon steel |
2 | $5,500 | $11,000 |
| 18. De-watering Machine (model#HTS800) | 1) main motor power: 75KW 2) machine inside material: stainless steel 3) rotor rotary diameter: φ850㎜ 4) rotor material: carbon steel |
2 | $20,000 | $40,000 |
| 19. Thermal Dryer (model#RSI800) |
1) pipe diameter: φ159㎜ 2) blower power: 5.5KW 3) pipe material: stainless steel 4) blower model: 9-19 NO.4X5 5) heating power: 30KW |
4 | $2,000 | $8,000 |
| 20. Cyclone Separator (model#FL1200) | 1) separator diameter: φ1000㎜ 2) material: stainless steel |
2 | $3,500 | $7,000 |
| 21. Finished Product Silo (model#GLC-2) |
1) silo material: stainless steel 2) silo volume: 1m3 |
2 | $3,500 | $7,000 |
| 1. Belt Conveyor for Waste (model#PS－800) |
1) belt width: 800㎜ 2) belt material: PVC 3) motor power: 2.2KW 4) reduction ratio: 1: 30 5) drive roll diameter: φ273㎜ 6) belt linear velocity: 0.63m/s 7) driven roller diameter: φ323㎜ |
1 | $6,000 | $6,000 |
| 22. Electric Panel | 2 | $20,000 | $40,000 | |
| Totals | Installed Power: 730KW Capacity: 3,000 – 4,000 KG/h |
$662,500 |
Ordering
- Quotation is for FOB Port of Shanghai.
- Payment Terms: 30% of the total contract price as down payment (T/T). The balance 70% of total contract price should be paid upon picking up the goods (T/T).
- Delivery: 60-90 working days after receiving the down payment.
- Price Validity: Prices listed on this webpage are a close approximation only. Final contract value will be determined based on your specifications.
- Warranty: One Year
- Packing: Wooden Cases
- The spare parts are available upon request.
Frequently Asked Questions
What equipment is included in the 3,000–4,000 kg/h PET washing line?
The standard configuration is a complete turnkey system: debaler, belt conveyors, trommel separator, sorting conveyors, four SWHB1200 granulators, label/film separators, six sink-float washing tanks, four hot boiler washers, two high-speed friction washers, two dewatering machines, four thermal dryers with cyclone separators, finished product silos, waste conveyor, and two electric control panels. Total installed power is 730 KW.
Can this line exceed 4,000 kg/h?
This configuration was designed for a client in Russia and can reach slightly higher capacities if several pieces of equipment are upgraded. Because key stages (granulators, washers, dryers) are installed in parallel, scaling up is straightforward. For a firm capacity target, share your bale supply and operating hours and our engineers will size the line accordingly.
What is the total price of this washing line?
The itemized quotation totals $662,500 USD, quoted FOB Port of Shanghai. Prices listed on the page are a close approximation only — the final contract value is determined by your exact specifications. Payment terms are 30% down payment by T/T with the 70% balance paid upon pickup, and delivery is 60–90 working days after the down payment.
Why does the line use four granulators?
Each SWHB1200 granulator (45 KW main motor, 10 rotating knives, SKD11 blades, 800–1,000 kg/h) handles roughly a quarter of the total throughput, so four units in parallel deliver the 3,000–4,000 kg/h target with redundancy — one unit can be serviced while the line keeps running. For help sizing crushers to your line, see our guide to choosing the right PET granulator.
How does the line achieve low final moisture?
Flakes pass through two high-speed dewatering machines (75 KW, centrifugal force) that strip most surface water, then four RSJ800-class thermal dryers (30 KW heating each) finish the job with hot air, and cyclone separators cool the flakes and remove fines. Our PET flakes washing and drying guide explains how each stage protects flake quality.
What warranty, packing, and after-sales support are included?
All machinery carries a one-year limited warranty against manufacturer defects. Equipment is packed in wooden cases for sea freight, spare parts are available upon request, and our PET recycling machine maintenance guide covers the routines that keep washers, dryers, and granulators running at rated capacity.
