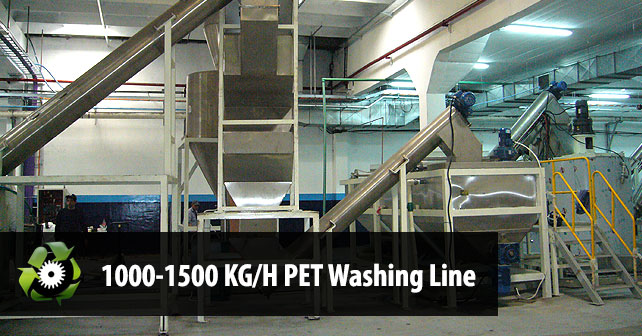

This is a standard 1,000 – 1,500 KG/H PET bottle washing line we designed for a client in the U.S.A and can reach slightly higher capacities if we upgrade several pieces of equipment.
PET Washing Line Diagram
[click to enlarge diagram]
Machinery List / Specifications / Quotation
| Machine Description | Specifications | Qty (piece) | Price (USD) | Total (USD) |
| 1. Belt Conveyor 1 (model#PS－800) | 1) belt width: 800㎜ 2) belt material: PVC 3) motor power: 2.2KW 4) reduction ratio: 1: 30 5) drive roll diameter: φ273㎜ 6) belt linear velocity: 0.63m/s 7) driven roller diameter: φ323㎜ |
1 | $6,000 | $6,000 |
| 2. Granulator (model#SWHB1200) | 1) main motor: 45KW 2) cutter head rotary diameter: φ630㎜ 3) cutter head width: 1150㎜ 4) No.of rotating knife: 10 pcs 5) No.of stating knife: 4 pcs 6) cutter material: SKD11 7) cutter head rotating speed: 462rpm 8) cutter head material: 45 steel 9) screen mesh: φ95㎜ 10) hydraulic open feeding hopper/ hydraulic screen changer 11) hydraulic station power: 2.2KW 12) capacity: 1000-1200kg/h 13) transmission power: 3KW 14) gear reducer model: NMRV130-30 15) screw conveyor rotating speed: 20-72.5rpm adjustable 16) screw vane diameter: φ250㎜ 17) screw space: 200㎜ 18) screw material: stainless steel |
1 | $24,000 | $24,000 |
| 3. Screw Conveyor 1 (model#LX-390) | 1) motor power: 3.7KW 2) screw conveyor rotating speed: 20-72.5 rpm 3) screw vane diameter: φ390㎜ 4) screw stroke: 300㎜ 5) screw material: stainless steel 6) frame material: carbon steel |
1 | $5,500 | $5,500 |
| 4. Film and Flake Separator (model#PMFL) | 1) material: stainless steel 2) frame material: carbon steel |
1 | $4,000 | $4,000 |
| 5. Wind-Sending System (model#FS) | 1) blower motor: 5.5KW 2) pipe diameter: φ159㎜ 3) pipe material: stainless steel |
1 | $1,500 | $1,500 |
| 6. Storage For Labels (model#GLC-1) | 1) storage material: stainless steel 2) volume: 2m3 |
1 | $1,000 | $1,000 |
| 7. Screw Conveyor 2 (model#LX-390) | 1) motor power: 3.7KW 2) screw conveyor rotating speed: 20-72.5 rpm 3) screw vane diameter: φ390㎜ 4) screw stroke: 300㎜ 5) screw material: stainless steel 6) frame material: carbon steel |
1 | $5,500 | $5,500 |
| 8. Washing Tank (model#QXC1500) | 1) Width inside: 1500㎜ 2) Total length: 5000㎜ 3) Material: stainless steel 4) Frame material: carbon steel 5) Bottom screw motor: 5.5KW 6) Discharge material screw motor: 3.7KW 7) Lifting dirt screw motor power: 3KW 8) Main motor power: 3KW |
2 | $34,000 | $68,000 |
| 9. Hot (Boiler) Washer (model#ZFL800) | 1) motor power: 7.5KW 2) reducer model: BLD5-71-7.5 3) agitating shaft rotating speed: 20rpm 4) heating power: 60KW 5) boiler material: stainless steel 6) transmission power: 3.7KW 7) reducer model: NMRV110-20 8) screw rotating speed: 20-72.5rpm, adjustable 9) screw vane diameter: φ290㎜ 10) screw spacer: 200㎜ 11) screw material: stainless steel |
2 | $16,000 | $32,000 |
| 10. High Speed Friction Washer (model#HXJ800) | 1) rotor rotary diameter: φ524㎜ 2) rotor material: carbon steel 3) rotor rotating speed: 960rpm 4) No. of rotor vane: 24 pcs 5) washer body: stainless steel 6) effective washing length: 2800㎜ 7) motor power: 37KW 8) conveying angle: 15° 9) driving way: belt drive |
1 | $22,000 | $22,000 |
| 11. Screw Conveyor 3 (model#LX-390) | 1) motor power: 3.7KW 2) screw conveyor rotating speed: 20-72.5 rpm 3) screw vane diameter: φ390㎜ 4) screw stroke: 300㎜ 5) screw material: stainless steel 6) frame material: carbon steel |
1 | $5,500 | $5,500 |
| 12. De-watering Machine (model#HTS800) | 1) main motor power: 75KW 2) machine inside material: stainless steel 3) rotor rotary diameter: φ850㎜ 4) rotor material: carbon steel |
1 | $20,000 | $20,000 |
| 13. Thermal Dryer (model#RSI800) | 1) pipe diameter: φ159㎜ 2) blower power: 5.5KW 3) pipe material: stainless steel 4) blower model: 9-19 NO.4X5 5) heating power: 30KW |
2 | $2,000 | $4,000 |
| 14. Cyclone Separator (model#FL1200) | 1) separator diameter: φ1000㎜ 2) material: stainless steel |
1 | $3,500 | $3,500 |
| 15. Finished Product Silo (model#LC-2) | 1) silo material: stainless steel 2) silo volume: 2.5m3 |
1 | $4,500 | $4,500 |
| 16. Electric Panel | 1 | $20,000 | $20,000 | |
| Totals | Installed Power: 310KW Capacity: 1,000 – 1,500 KG/h |
$227,000 |
Ordering
- Quotation is for FOB Port of Shanghai.
- Payment Terms: 30% of the total contract price as down payment (T/T). The balance 70% of total contract price should be paid upon picking up the goods (T/T).
- Delivery: 60-90 working days after receiving the down payment.
- Price Validity: Prices listed on this webpage are a close approximation only. Final contract value will be determined based on your specifications.
- Warranty: One Year
- Packing: Wooden Cases
- The spare parts are available upon request.
Frequently Asked Questions
What is the total investment for this PET washing line?
The listed quotation totals $227,000 for the complete 1,000 – 1,500 KG/H line, covering 16 machine positions from conveyors to the finished product silo. Prices shown are a close approximation only — the final contract value is determined by your specifications, so share your material and capacity requirements for an exact quote.
What is the installed power of the line?
The total installed power for this configuration is 310KW, with the largest single consumers being the granulator (45KW main motor), the de-watering machine (75KW), and the hot washer heating (60KW). Actual energy consumption depends on operating hours, feedstock, and how the equipment is loaded.
What are the payment and delivery terms?
Quotation is on FOB Shanghai Port basis. Payment terms are 30% of the contract price as down payment by T/T, with the 70% balance paid when picking up the goods. Delivery is 60 – 90 working days after the down payment is received, depending on project complexity and the current manufacturing queue.
What warranty and packaging are included?
The line comes with a one-year warranty, and spare parts are available upon request. Equipment is packed in secure wooden cases for shipment. For details on warranty coverage or to arrange commissioning support and operator training, contact our team before placing your order.
Can the line capacity be increased beyond 1,500 kg/h?
Yes. This standard configuration is rated 1,000 – 1,500 KG/H, and slightly higher capacities are possible by upgrading several pieces of equipment, such as the granulator and washing units. Tell us your target throughput and we will adjust the machinery list and quotation accordingly.
Which machines are included in the line?
The line includes belt and screw conveyors, a SWHB1200 granulator, a film and flake (label) separator, two QXC1500 washing tanks, two ZFL800 hot boiler washers, an HXJ800 high-speed friction washer, an HTS800 de-watering machine, two RSI800 thermal dryers, a cyclone separator, a finished product silo, and the electric control panel.
