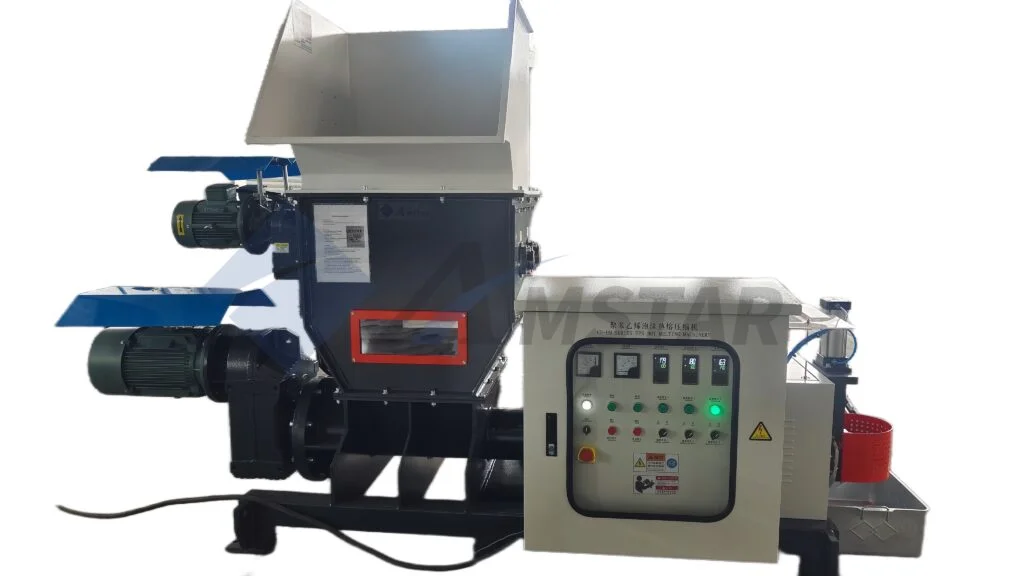

ASG introduces a reliable, space-saving solution for recycling bulky EPS materials with our EPS Hot Melting Machinery series. These machines transform foam waste into dense ingots, reducing volume by up to 90%, easing storage and transportation, and enabling eco-friendly reuse.
PRODUCT MODELS & SPECIFICATIONS
| Model | AM-EH 100 | AM-EH 200 | AM-EH 400 |
| Capacity | 40-50 kg/h | 100–120 kg/h | 180–200 kg/h |
| Screw Dia. | φ138 mm | φ197 mm | φ250 mm |
| Heating Power | 3 kW | 10 kW (3 zones) | 14 kW (3 zones) |
| Main Motor | 7.5 kW | 15 kW | 22 kW |
| Crusher Motor | 2.2 kW | 2.2 kW × 2 | 2.2 kW × 4 |
| Weight | 800 kg | 1400 kg | 1800 kg |
WORKING PRINCIPLE

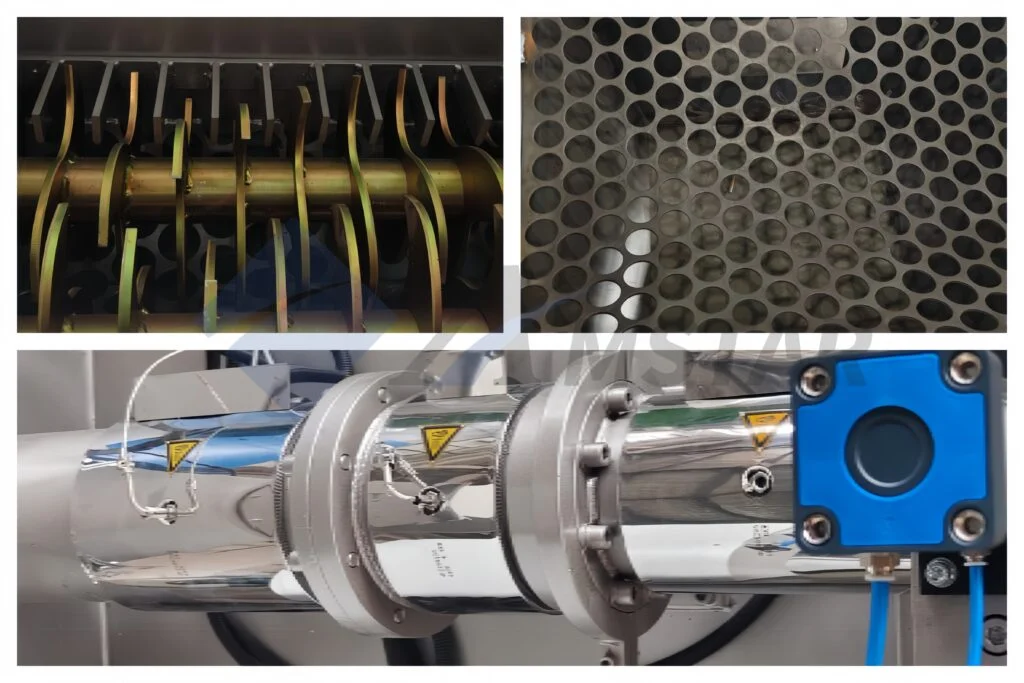

Each EPS melter features:
- Multi-shaft Crushing Blades: Breaks foam into small pieces.
- Rotary Screw Feeding: Transports material into a heating barrel.
- Thermal Compression: Melts EPS into semi-liquid form.
- Hydraulic Cutting System: Shapes material into dense, uniform blocks.
The process significantly reduces waste volume and produces high-density EPS ingots for reprocessing.
APPLICATION SCENARIOS
| Model | Suggested Use Environment |
| AM-EH 100 | Small retail stores, seafood counters, schools |
| AM-EH 200 | Medium-sized recycling stations, supermarkets |
| AM-EH 400 | Industrial-grade recyclers, municipal centers |
ENVIRONMENTAL BENEFITS
- Volume reduction of foam waste: up to 90%
- No water pollution or toxic emissions
- Contributes to circular economy and green manufacturing
- Low operational cost, high ROI
WARRANTY
All recycling machines come with a 1 year limited warranty.
INQUIRIES
To get the latest prices and lead times, send us a message using the form below.
Frequently Asked Questions
What models are available, and how do I choose the right one?
Three models cover 40-50 kg/h (AM-EH 100), 100-120 kg/h (AM-EH 200), and 180-200 kg/h (AM-EH 400). The EH 100 suits small retail stores, seafood counters, and schools; the EH 200 fits medium recycling stations and supermarkets; the EH 400 is built for industrial recyclers and municipal centers. Match the model to your daily foam volume and available floor space.
How does the hot melting densifier work?
Multi-shaft crushing blades first break foam into small pieces, a rotary screw feeds them into a heating barrel, thermal compression melts the EPS into semi-liquid form, and a hydraulic cutting system shapes it into dense, uniform blocks. The process cuts foam volume by up to 90% and outputs high-density ingots ready for reprocessing.
What are the power requirements for each model?
Heating power ranges from 3 kW on the AM-EH 100 to 10 kW across 3 zones on the EH 200 and 14 kW across 3 zones on the EH 400; main motors run 7.5, 15, and 22 kW respectively, plus crusher motors. All models need three-phase industrial power and adequate ventilation for the melting process.
What maintenance does the densifier require?
Inspect the crushing blades and screw for wear, keep the heating zones and temperature controls calibrated, and clean the melt barrel of carbonized residue to protect ingot quality. Check the hydraulic cutting system and drive components on a regular schedule. Because the machine runs hot, verify safety interlocks and ventilation before each shift.
Is the hot melting process environmentally safe?
Yes. The machine produces no water pollution or toxic emissions under normal operation; it simply collapses foam with heat. By diverting bulky EPS from landfills and producing a recyclable ingot, it supports the circular economy and green manufacturing with low operational cost and high ROI.
What warranty and lead time apply?
All machines come with a one-year limited warranty. To get the latest prices and lead times, send a message through the inquiry form below; delivery depends on the model and the current production queue. Spare blades, heating elements, and wear parts are available on request.
