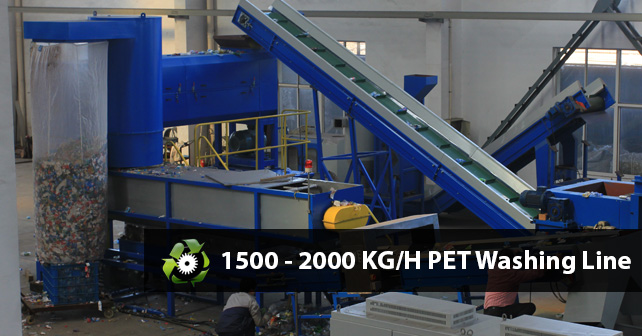

This is a standard 1,500-2,000 KG/H PET bottle washing line we designed for a client in the U.S.A and can reach slightly higher capacities if we upgrade several pieces of equipment.
PET Washing Line Diagram
[click to enlarge diagram]
Machinery List / Specifications / Quotation
| Machine Description | Specifications |
| 1. Belt conveyor (PSL-1000, 1 set) |
1) belt width: 1000㎜ 2) belt material: PVC 3) motor power: 3.7KW 4) reduction ratio: 1: 30 5) drive roll diameter; φ273㎜ 6) belt linear velocity 0.63m/s |
| 2. Bag opener（with bounce separator, CBJ, 1 set) |
1) power: 5.5kw 2) reduction ratio: 1:35 3) main shaft rotating speed: 42rpm 4) turning diameter: φ390㎜ 5) main machine material: Q235 6) putting platform dimension: 1900×2500㎜ 7) feeding mouth dimension: 1800×2200㎜ |
| 3. Belt conveyor (PSL-1000, 1 set) |
1) belt width: 1000㎜ 2) belt material: PVC 3) motor power: 3.7KW 4) reduction ratio: 1: 30 5) drive roll diameter; φ273㎜ 6) belt linear velocity 0.63m/s |
| 4. Wet Label remover (TB－800, 1 set) |
1) Drum diameter φ1000㎜ 2) Drum Length 4500㎜ 3) Rotary speed 500 5) Material 45 6) Motor power 22KW |
| 5. Belt conveyor (PSL-1000, 1 set) |
1) belt width: 1000㎜ 2) belt material: PVC 3) motor power: 3.7KW 4) reduction ratio: 1: 30 5) drive roll diameter; φ273㎜ 6) belt linear velocity 0.63m/s |
| 6. Sorting conveyor (FXPS, 1 set) |
A. Sorting conveyor, frequency control, 2 sets 1) belt width: 600㎜ 2) belt material: PVC 3) motor power: 1.5 KW 4) roller diameter: φ240㎜ 5) belt linear velocity 0-1.25m/s 6) belt conveyor length: 8000㎜ B. Reverse conveyor 1) belt width: 400㎜ 2) belt material: PVC 3) motor power: 1.5 KW 4) roller diameter: φ240㎜ 5) driven roller diameter: φ215㎜ 6) belt linear velocity 0-1.25m/s 7) belt conveyor length: 8000㎜ |
| 7. Belt conveyor (PS－800, 1 set) |
1) belt width: 800㎜ 2) belt material: PVC 3) motor power: 2.2KW 4) reduction ratio: 1: 30 5) drive roll diameter; φ273㎜ 6) belt linear velocity 0.63m/s |
| 8. Crusher (SWHB1000, 2 sets) |
1) main motor 75KW 2) cutter head rotary diameter: φ630㎜ 3) cutter head width: 980㎜ 4) No.of rotating knife: 10 pcs 5) No.of stating knife: 4 pcs 6) cutter material: SKD11 7) cutter head rotating speed: 462rpm 8) cutter head material: 45 steel 9) screen mesh: φ16㎜ 10) mechanical change screen: 0.75KW 11) capacity: 800-1000kg/h 12) transmission power: 2.2KW 13) gear reducer model: NMRV130-20 14) screw conveyor rotating speed: 72.5rpm 15) screw vane diameter: φ250㎜ 16) screw space: 200㎜ 17) screw material: stainless steel |
| 9. Screw conveyor 1 (LX-390, 1 set) |
1) motor power: 3.7KW 2) screw conveyor rotating speed: 20-72.5rpm adjustable 3) screw vane diameter: φ390㎜ 4) screw stroke: 300㎜ 5) screw material: stainless steel 6) frame material: carbon steel |
| 10. Washing tank (QXC1500, 1 set) |
1. Width inside: 1500㎜ 2. Total length: 4500㎜ 3. Material: stainless steel 4. Frame material: carbon steel 5. Bottom screw motor: 5.5KW 6. Lifting dirt screw motor power: 3.7KW (one of it’s frequency control) 7. Main motor power: 0.37KW 8. Well distributed motor power 2.2KW |
| 11. Cooking Boiler (ZG1700, 2 sets) |
1) motor power: 7.5KW 2) reducer model: BLD5-71-7.5 3) agitating shaft rotating speed: 20rpm 4) boiler material: stainless steel 5) transmission power: 3.7KW 6) reducer model: NMRV110-20 7) screw rotating speed: 20-72.5rpm, frequency control 8) screw vane diameter: φ287㎜ 9) screw spacer: 200㎜ 10) screw material: stainless steel |
| 12. High speed Friction machine (HXJ800, 1 set) |
1) rotor rotary diameter: φ524㎜ 2) rotor material: carbon steel 3) rotor rotating speed: 960rpm 4) No. of rotor vane: 24 pcs 5) washer body: stainless steel 6) effective washing length: 2800㎜ 7) motor power; 45KW 8) conveying angle: 15° 9) driving way: belt drive |
| 13. Screw conveyor 1 (LX-390, 1 set) |
1) motor power: 3.7KW 2) screw conveyor rotating speed: 20-72.5rpm adjustable 3) screw vane diameter: φ390㎜ 4) screw stroke: 300㎜ 5) screw material: stainless steel 6) frame material: carbon steel |
| 14. Washing tank (QXC1500, 1 set) |
1. Width inside: 1500㎜ 2. Total length: 4500㎜ 3. Material: stainless steel 4. Frame material: carbon steel 5. Bottom screw motor: 5.5KW 6. Lifting dirt screw motor power: 3.7KW (one of it’s frequency control) 7. Main motor power: 0.37KW 8. Well distributed motor power 2.2KW |
| 15. Dewatering machine (HTS800, 1 set) |
1) main motor power: 45KW 2) machine inside material: stainless steel 3) rotor rotary diameter: φ850㎜ 4) rotor material: carbon steel |
| 16. Hot air conveyor (RSJ800, 1 set) |
1) pipe diameter: φ159㎜ 2) blower power: 5.5KW 3) pipe material: stainless steel 4) blower model: 6-30 -4.7A 5) heating power: 48KW |
| 17. Finished product Silo (LC-2, 1 set) |
1) silo material: stainless steel 2) silo volume: 2.5m3 |
| Capacity: 1,500 -2,000 KG/h | Price: $320,000 |
Ordering
- Quotation is for FOB Port of Shanghai.
- Payment Terms: 30% of the total contract price as down payment (T/T). The balance 70% of total contract price should be paid upon picking up the goods (T/T).
- Delivery: 60-90 working days after receiving the down payment.
- Price Validity: Prices listed on this webpage are a close approximation only. Final contract value will be determined based on your specifications.
- Warranty: One Year
- Packing: Wooden Cases
- The spare parts are available upon request.
Frequently Asked Questions
What capacity does this PET bottle washing line offer?
This configuration is rated at 1,500 to 2,000 kg per hour, making it suitable for mid-to-large recycling operations. If your target throughput is slightly higher, several key machines — such as the crushers, friction machine, and dewatering unit — can be upgraded to lift the overall line capacity. Share your production goals with our engineering team so we size each stage to match.
What equipment is included in this configuration?
The line includes 17 machine groups: belt conveyors, a bag opener with bounce separator, a wet label remover, a sorting conveyor with reverse conveyor, two SWHB1000 crushers, screw conveyors, two washing tanks, two cooking boilers, a high-speed friction machine (HXJ800), a dewatering machine (HTS800), a hot air conveyor dryer, and a finished-product silo. Together they take baled bottles through debaling, label removal, crushing, hot and cold washing, dewatering, and drying.
What are the commercial terms for this line?
The listed price for this configuration is $320,000 on FOB Shanghai terms, with 30% down payment by T/T and the remaining 70% paid on pickup. Delivery is 60 to 90 working days after the down payment is received. Please note the listed price is a close approximation — the final contract value is set from your specifications — and machines are packed in wooden cases for shipment.
What feedstock can the line process?
The line is designed for PET bottles, as shown in this reference configuration built for a client in the U.S.A. The bag opener breaks up bales, the wet label remover and sorting conveyor handle labels and contamination, and the cooking boilers and friction machine deliver deep cleaning. For unusual bottle mixes or contamination levels, our engineers can adjust the configuration to suit your feedstock.
Can the line be customized or upgraded?
Yes. This page shows one proven standard configuration, but we routinely tailor washing lines to capacity targets, bottle types, contamination levels, and site conditions. Upgrading key machines such as the crushers, hot wash boilers, or drying equipment can raise throughput beyond 2,000 kg/h. Custom-built configurations are available — contact our team with your specifications for a tailored quotation.
What warranty and spare parts support is included?
The line carries a one-year warranty, and spare parts are available upon request, so wear components for the crushers, friction machine, and dewatering unit can be replaced promptly. Our engineers support installation and commissioning at your facility, and you can keep critical spares on site to minimize downtime over the life of the line.
